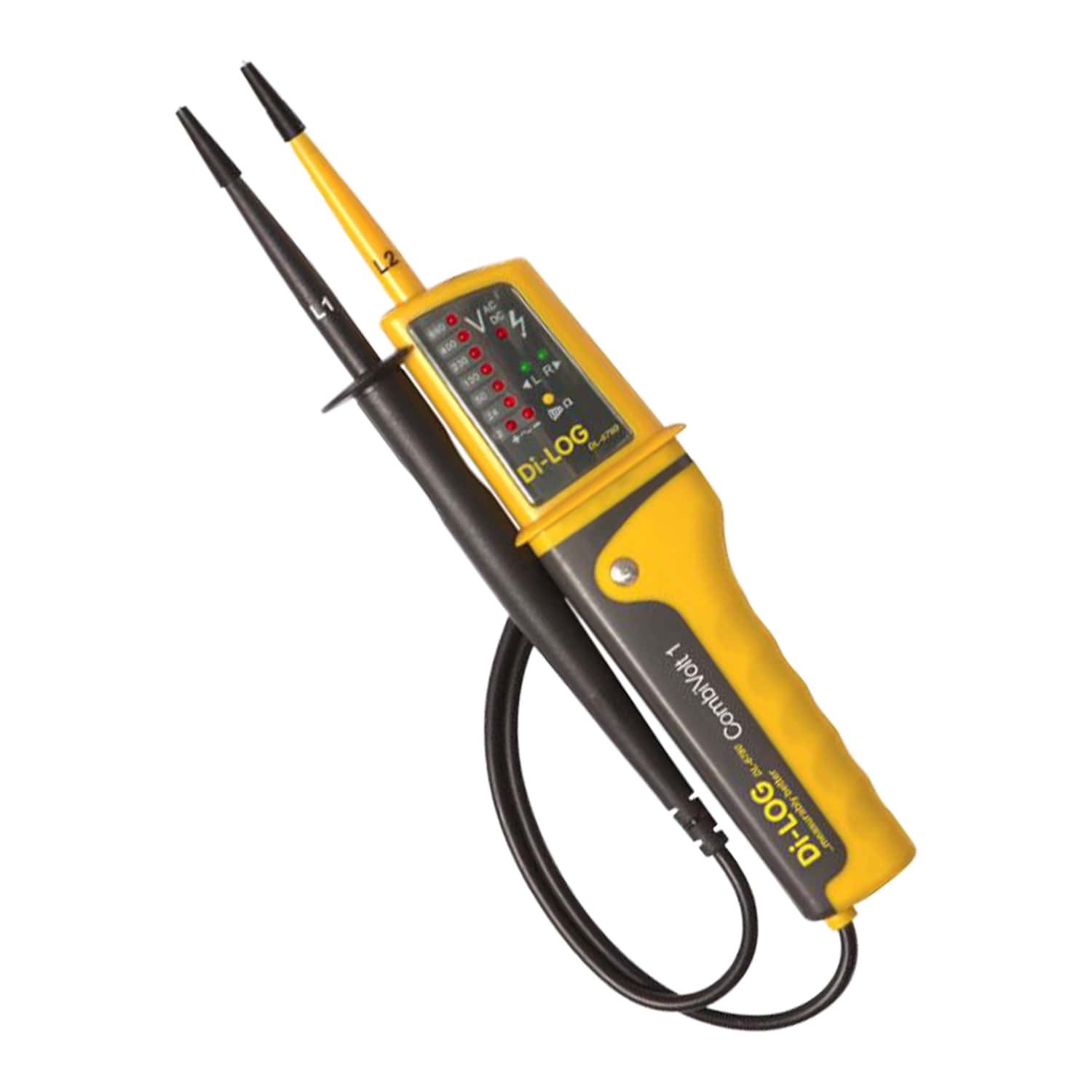

CombiVolt 1 Voltage Continuity Tester DI-LOG

Product Code: DL6780

£37.80

( each exc VAT )

Be the first to review this product

Quantity:

Add to favourites

Back order

DL6780 CombiVolt 1 Voltage Indicator

Voltage & Continuity Testers

The Di-log DL6780 CombiVolt 1 Voltage & Continuity Tester with Phase Rotation test is the bench mark for voltage indicators. The three-in-one tester with a rugged, ergonomically formed housing for perfect handling is fully conformant to BS EN 64213-3:2014. The DL6780 also offers Single Phase Detection

Features:

Testing of AC/ DC voltages from 12 to 690 V AC/DC
Meets safety and performance requirements of BS EN 61243-3 2014
CAT IV 600V Safety Rating
Continuity testing with optical and acoustic indication
Automatic switching between voltage and continuity
Phase rotation test system
Single pole phase indication
Fully compliant with GS38
Fully operational voltage indication even when batteries are discharged
Will not trip any RCD when testing across Live and Earth
Single pole detection when L2 probe connected above 100V

Specifications

Voltage display	12 – 690 V AC/DC
LED resolution	12, 24 , 50, 120, 230, 400, 690
LCD resolution	n/a
Voltage detection	Automatic
Acoustic signal	AC voltage – DC voltage
Polarity detection	Full range
Response time	LED < 0.1s
Frequency range	0 – 400 Hz
Peak current	Is < 0.3 A / Is (after 5s) < 3.5 mA
Operation time	30s
Recovery time	10 min
Auto power on	< 12 V AC/DC
Single pole voltage indication
Voltage range	100 – 690 V AC
Frequency range	50 – 400 Hz
Continuity
Measuring range	0 – 400 KΩ
Phase rotation test
Voltage range	100 – 690 V
Frequency	45 – 65 Hz
Over voltage protection	690 V AC/DC g
Safety Standards	CAT IV 600V IEC 60529 (IP65), 61243-3 EN61010-1:2010, EN61010-2-033:2010, EN61010-031:2002+A1:2008, IEC 61243-3:2009, EN61243-3:2010, EN61243-3:2014 & EN61326-1
Power supply	2 x 1.5 V LR03 batteries
Dimensions	255 x 70 x 28 mm
Weight	200 g
